Products >> Surface Pump >> JET Pump

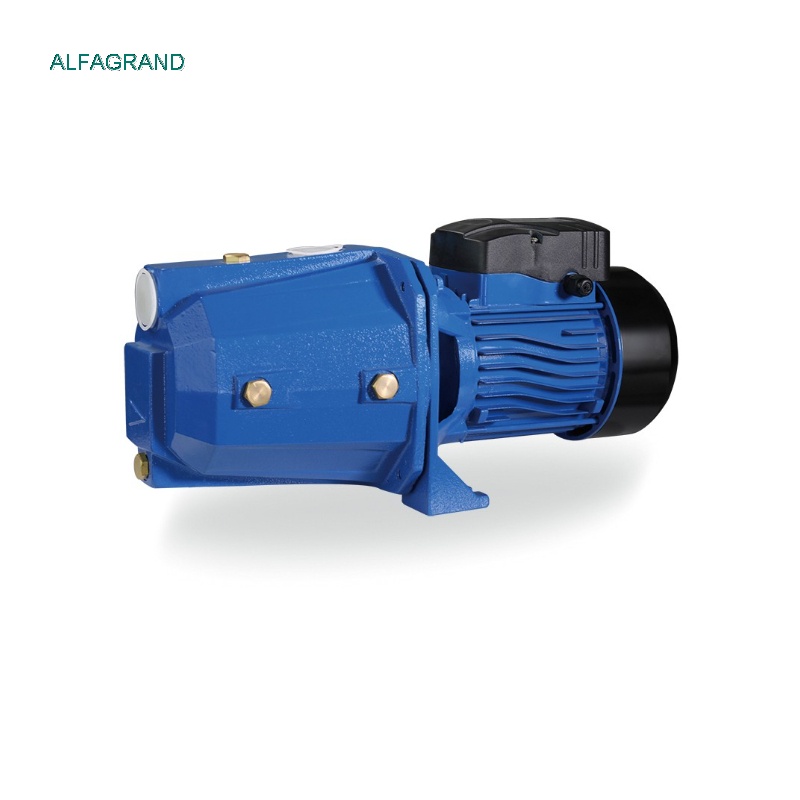

JET60B-100B Self-Priming Jet Pump

Product No.：20226912340
Price：28USD-45USD
Product name：JET60B-100B self-priming jet pump for garden and household water supply
Horsepower：0.5HP-1.0HP
Model Number：JET Series
Material：Iron Pump Head,Alu Pump Casting,Brass Impeller
Voltage：110V/60Hz, 220V/50Hz
Other：MOQ: 100 PCS; lead time 20-25 days loose cargo / 30-36 days container
Online Inquiry

Type: JET60B-80B-100B

Operating conditions:

1. Max working pressure 8 bar

2. Liquid temperature up to 60ìC

3. Ambient temperature up to 40ìC

4. Total suction lift to 9m

5. Continuous duty

Motor:

1. Two-Pole induction motor (n=2900r.p.m.)

2. Insulation Class B/F

3. Protection IP44

Material:

1. Pump body: Cast Iron

2. Motor Support: Cast Iron

3. Impeller: Brass/Noryl

4. Diffuser: Noryl

5. Shaft with rotor: 45# Carbon Steel/Stainless Steel

6. Mechanical seal: Carbon/Ceramic

Application:

-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.

-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.

PARAMETER DATA:

Model	Power		Max. Flow(L/h)	Max.Head(m)	Max.Suct. (m)	Inlet/Outlet (inch)	G.W./N/W.(kg)	Packing size(mm)	QTY/20”CTR(pc)
Model	KW	HP	Max. Flow(L/h)	Max.Head(m)	Max.Suct. (m)	Inlet/Outlet (inch)	G.W./N/W.(kg)	Packing size(mm)	QTY/20”CTR(pc)
JET60B	0.37	0.5	2400	35	9	1”x1”	14/13	455x220x225	1540
JET80B	0.55	0.75	3000	40	9	1”x1”	15/14	455x220x225	1540
JET100B	0.75	1.0	3600	45	9	1”x1”	16/15	455x220x225	125

JET60B-100B Self-Priming Jet Pump Overview

The JET60B-100B series is a self-priming jet pump for clean water applications where suction performance and stable pressure are required. It is commonly used for household supply, garden watering and small water transfer.

Recommended Applications

Garden watering and clean water transfer
Household water supply from tanks or wells
Distributor orders for JET pump ranges

Ordering Information for Export Buyers

Standard MOQ is 100 pcs. Typical lead time is 20-25 days for loose cargo or 30-36 days for one container, with final terms confirmed in the quotation. OEM branding, carton design, voltage and plug configuration can be discussed according to the order quantity and destination market.

FAQ

Q: What information should I provide before quotation?
A: Please send required flow, total head, voltage/frequency, quantity, water source and application.

Q: Is this pump suitable for clean water?
A: Yes. This model is intended for clean water applications. Avoid sand, sewage, chemicals or high-solid liquids unless a suitable pump type is confirmed.

Q: What certificates are available?
A: ISO 9001 documentation is available. CE documents depend on the exact model and destination market.
