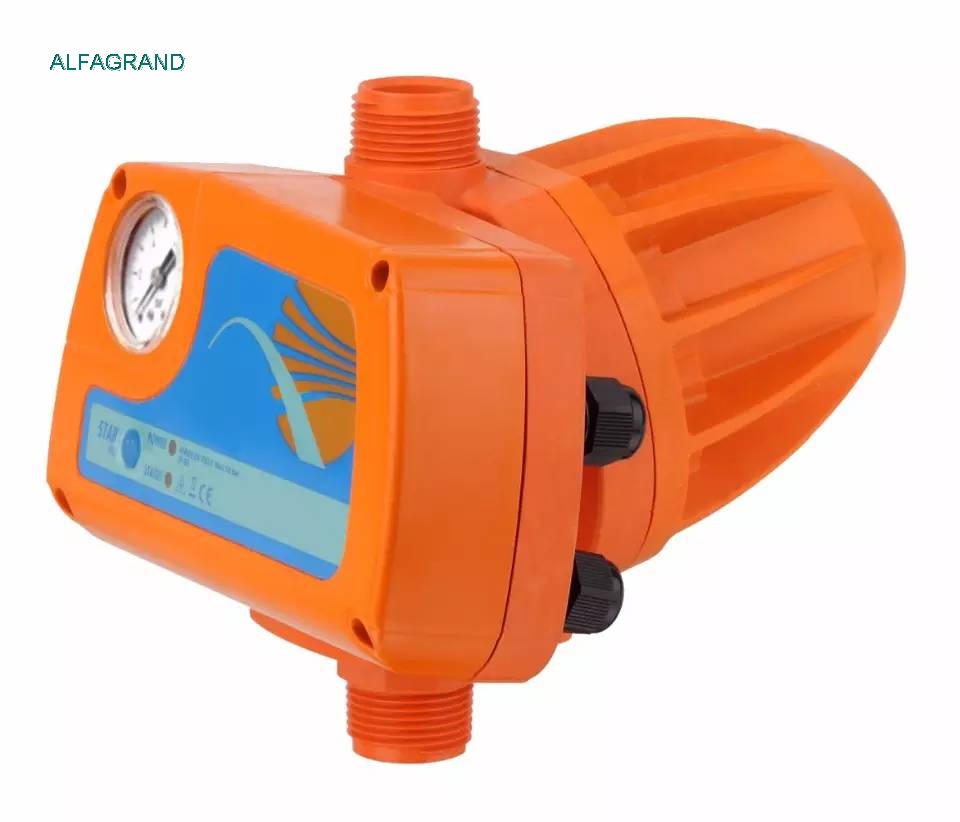

NEW style automatic control for water pump

Specification

pump control

CE and TUV certificates
Start and stop water pump automatically electric switch used in water systems

customized setting

Parameters

1. Rate voltage: 220V/240V

2. Max. Rated Current: 10A

3. Frequency: 50HZ/60HZ

4. Max. power:1.1KW (220V-240V)

                              0.75KW

5. Joint screw: R1''

6. Protection grade: IP65

7. Starting pressure setting:1.5 bar

8, Max allowable pressure:10 bar(1Mpa)

9, Max ambient temperature:60°C

Descriptions:

1, electric switch used in water systems

2, Start and stop water pump automatically according to the pressure and water storage

   It starts the electric pump automatically after a pressure decrease (taps opening) and stops it          when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closed).

   Stop the water pump in the case of water shortage.

Direction for operation:
1,it will indicate the pump has started when the green light Power on lights up after connecting the power.

2,When the yellow light Pump on lights up, it indicates the pump has been started. The pump continues to operate for a few minutes enabling the system to fill in the pipes and to reach the required pressure.

3,If this lapse is insufficient, the red light failure will light up. In this event, keep the Restart button pressed and wait, with a tap opened till the red light is off. Once released the button and closed the tap, the product will keep the pump at its maximum pressure

Advantage:

1, It has the features of stable performace, low maintenance and long life etc,

2, Completely replaced the complicated traditional pump control system composed of pressure gauge,pressure switch, T-valve, check valve and pressure tank

3, Its starting flow is about 36-60L/h and is convenient for home application

Function:

The product is designed especially for all control operation of automatic water pump.

If the particular breakdowns occur, suction pipe etc, the product recognizes the breakdowns and the red light failure lights up. Meanwhile,a stop signal is sent to the pump to prevent damages caused by its working in the absence of water. Rectification of the failures that have caused the blockage, allows the system to be restarted by pressing the restart button.

The controller can ensure a constant pressure for the water supplying system and thus reduce the water hammer effect inside pipeline during water delivering. The controller also posesses the features of reset after power failure.
