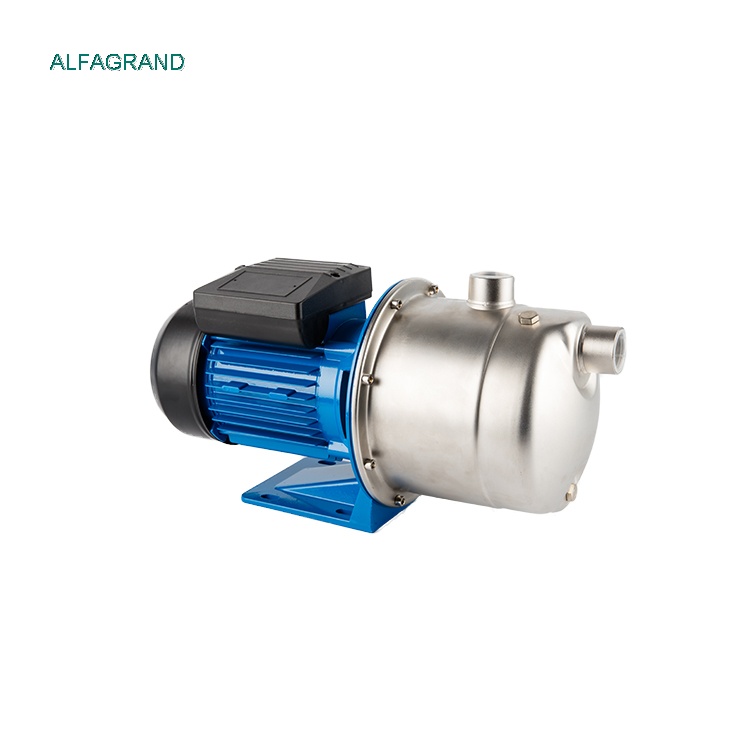

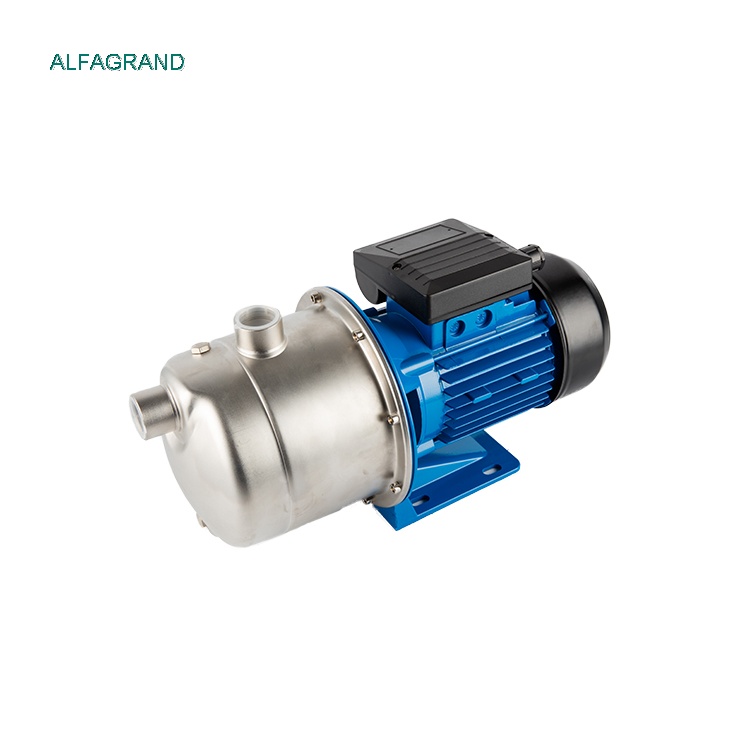

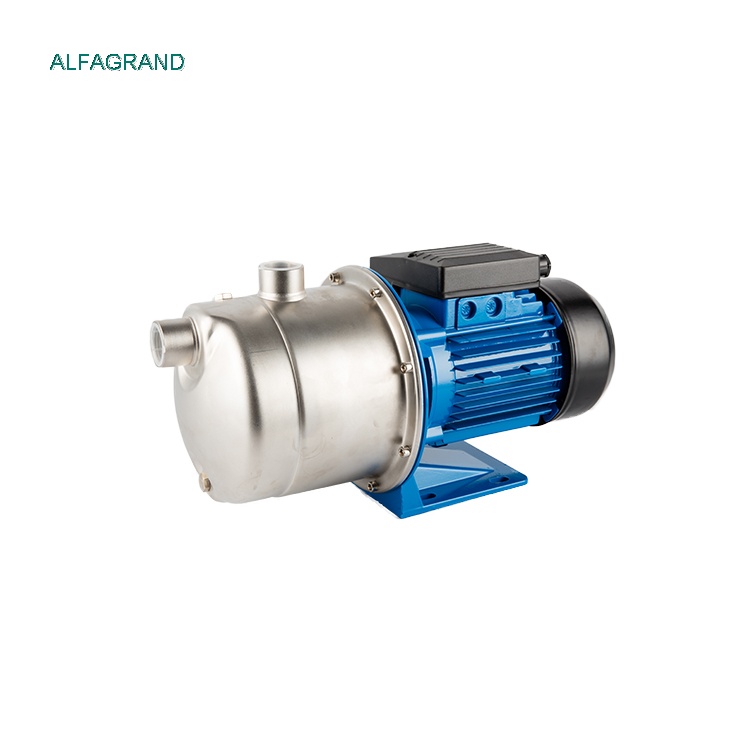

Type: JET60P-80P-100P

Operating conditions:

1. Max working pressure 8 bar

2. Liquid temperature up to 60ìC

3. Ambient temperature up to 40ìC

4. Total suction lift to 9m

5. Continuous duty

Motor:

1. Two-Pole induction motor (n=2900r.p.m.)

2. Insulation Class B/F

3. Protection IP44

Material:

1. Pump body: Plastic

2. Motor Support: Cast Iron

3. Impeller: Brass/Noryl/Aluminum

4. Diffuser: Noryl

5. Shaft with rotor: 45# Carbon Steel/Stainless Steel

6. Mechanical seal: Carbon/Ceramic

Application:

-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.

-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
