Single Phase Surface HCT Electric Water centrifugal Pump For Watering Gardens
Professional Manufacturer Of Water Pumps in China

Products >> Surface Pump >> Centrifugal Pump

  • HCT-S
  • HCT-S
  • HCT-S
  • HCT-S
HCT-S HCT-S HCT-S HCT-S

HCT-S

  • Product No.:2022827152135
  • Price:70USD~80USD
  • Product name:HCT-S Stainless Steel Pump Body Surface Centrifugal Pump For Agricultural
  • Horsepower:370W/550W/750W/1500W/2200W
  • Model Number:HCT Series
  • Material:Copper wire,brass impeller,Aluminum casting,Stainless steel pump body
  • Voltage:220v/50hz/110v/60hz
  • Other:Min. Order: 100 Pieces
  • Online Inquiry

Type: HCT-S

Operating conditions:

1. Max working pressure 8 bar

2. Liquid temperature up to 60℃

3. Ambient temperature up to 40℃

4. Total suction lift to 9m

5. Continuous duty




Motor:

1. Two-Pole induction motor (n=2900r.p.m.)

2. Insulation Class B/F

3. Protection IP44




Material:

1. Pump body: Stainless steel

2. Motor Support: Cast Iron

3. Impeller: Brass/Noryl

4. Diffuser: Noryl

5. Shaft with rotor: 45# Carbon Steel/Stainless Steel

6. Mechanical seal: Carbon/Ceramic


Application:

-Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates.


-Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.


-To be used in flow irrigation systems in gardening and agriculture and industrial fittings

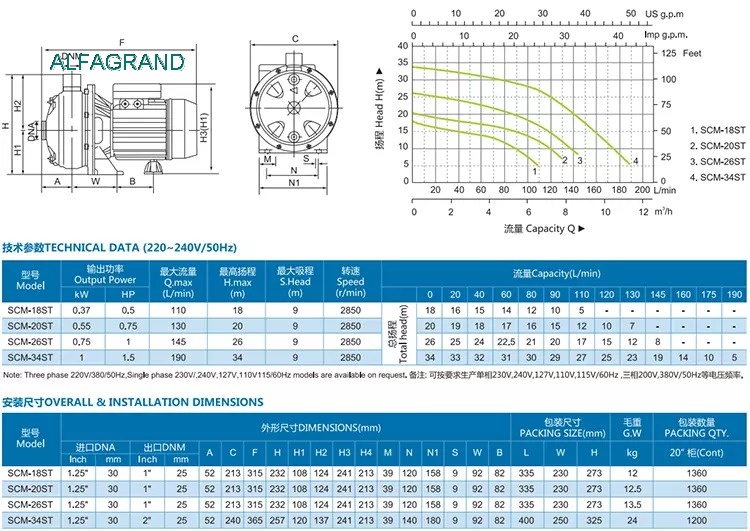

PARAMETER DATA:

Model

Power kw

POWER hp

Max.head (m)

Max.flow (L/min)

Max.suct

( m )

Inlet/Outlet

Packing dimension (mm)

HCT-18S 0.37 0.5 18 140 9 1.25’’ X 1’’ 340x235x265
HCT-20S 0.55 0.75 20 145 9 1.25’’ X 1’’ 340x235x265
HCT-26S 0.75 1 26 150 9 1.25’’ X 1’’ 340x235x265
HCT-30S 1.1 1.5 30 215 9 1.25’’ X 1’’ 370x240X265
HCT-33S 1.5 2 33 250 9 1.25’’ X 1’’ 370x240X265
