Products >> Water Valve >> 2nd Water Level Control Valve

JYNS 1/2-3/4-1 Inch Water Level Control Valve

JYNS 1/2-3/4-1 Inch Water Level Control Valve

Product No.：20221118221219
Product name：JYNS water level control valve for 1/2 inch, 3/4 inch and 1 inch tank connections
Other：MOQ: 100 PCS; lead time 20-25 days loose cargo / 30-36 days container; OEM support
Online Inquiry

Details:

The AUTOMATIC WATER LEVEL CONTROL VALVE is a patented product, which is lnstead of old float valve.It automatically supply and stop water according to the water level change.

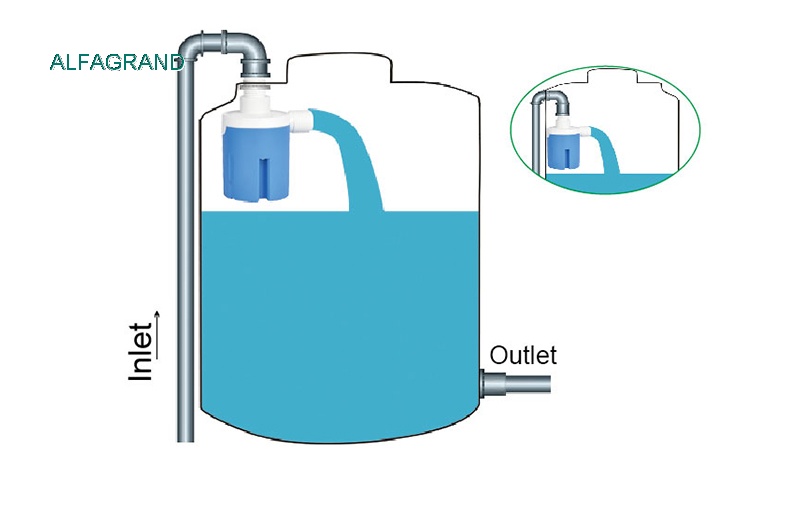

Product Principle:
When water level rise to water limit line, water level control valve will stop supplying water at once;
When water level of water tank fall down, the valve will start to supply water automatically.

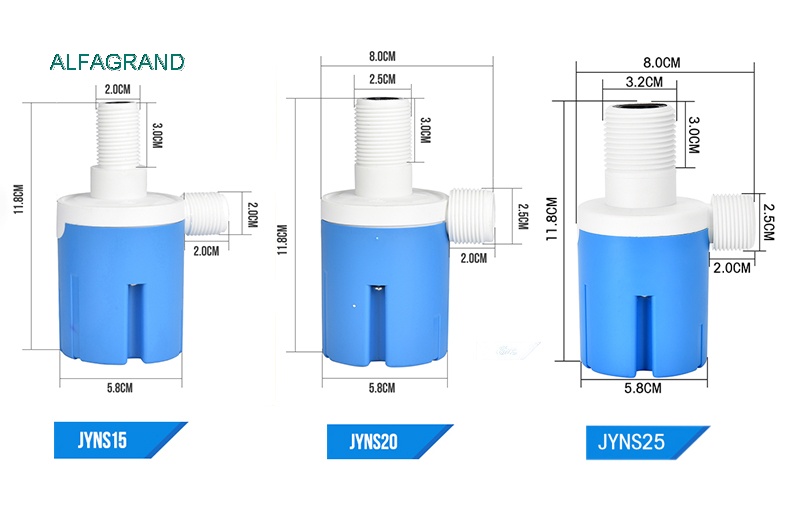

SPECIFICATION

MODEL	SIZE	INSTALLATION		TEMPERATURE	WORK PRESSURE
JYN15	1/2''	Horizontal	Inside	≤80 ℃	0.01~1.0MPa 0.1~10 Bar 1.5-150PSI
JYN20	3/4"	Horizontal
JYN25N	1"	Horizontal
JYNS15	1/2''	Vertical
JYNS20	3/4"	Vertical
JYNS25	1"	Vertical

PACKING
