AUTOQB60-70-80 Automatic Peripheral Booster System

AUTOQB60-70-80 Automatic Peripheral Booster System

Product No.：202211122330
Price：28~35USD
Product name：AUTO QB-60 water pump
Horsepower：0.5HP-1.0HP
Model Number：QB Series
Material：Pump body: Cast Iron;Pump Impeller: Brass/Techno-polymer(P.P.O)/Stainless steel;Motor Housing: Aluminum;Pump Shaft: Stainless Steel/Carbon Steel;
Voltage：110V/60HZ,220V/50HZ
Other：High Pressure
Power Source：Electric
Water Quality：Clean Water
Motor：Copper/Aluminum Wire
Online Inquiry

AUTOQB Automatic Booster System

The AUTOQB60-70-80 series combines a peripheral water pump with an automatic pressure tank system for household water supply and pressure boosting. Tank capacity and component configuration vary; confirm the required pressure range, flow, head and electrical supply for the exact version.

Products Description

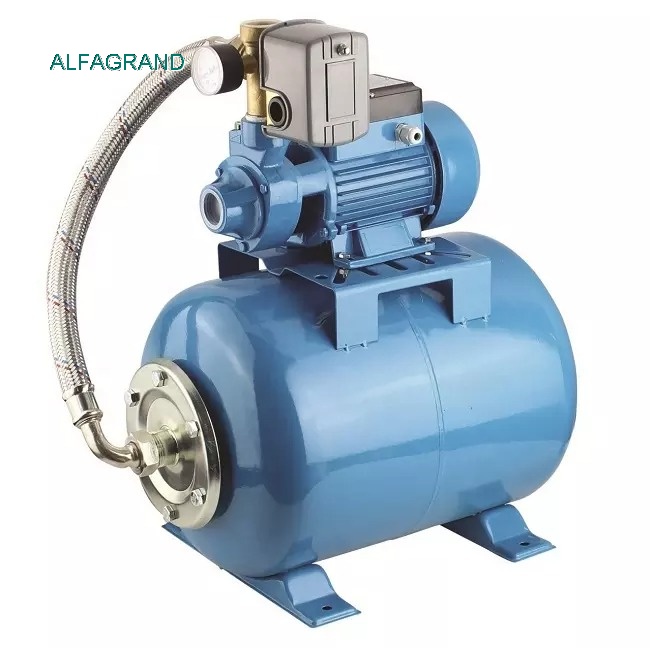

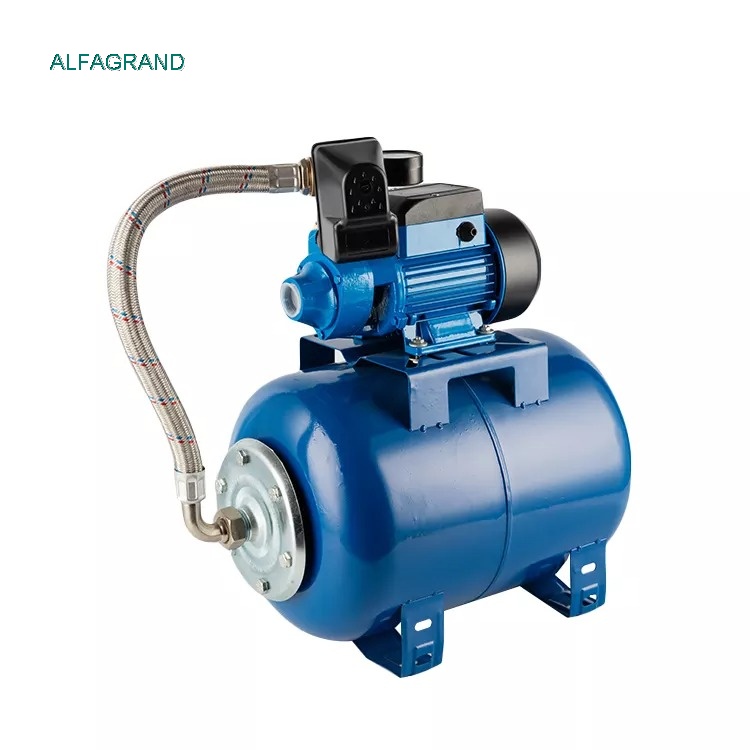

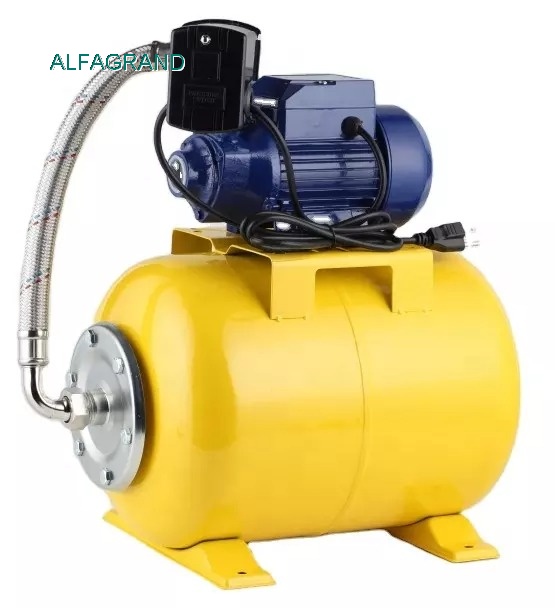

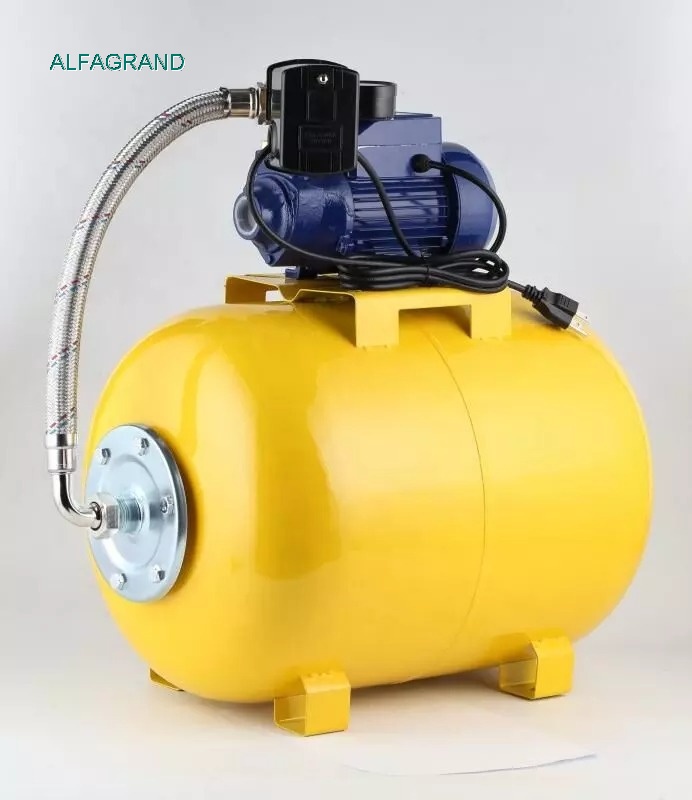

AUTO QB Series Automatic Booster System Water Booster Pump with 24L/50L Pressure Tank


The automatic booster systems consist of a JET water pump, peripheral pump of centrifugal pump, with a pressure tank, an airtight pressure switch, a pressure gauge and connecting flexible pipe.Make the pump automatic, thus to apply more convenient.
 The pressure tank equipped with a non-toxic rubber membrane, has been pre-filled with air pressure of approx 0.12MPa before leaving the workshop.
These systems give suitable mains water pressure as required by modern domestic applications and industrial applications, and will ensure enough water supply all user outlets. Most of the pumps included in our range of products can actually be used to form automatic booster systems.

PRODUCT SPECIFICATIONS

OPERATING CONDITIONS

►Max Suction:9M

►Max Liquid Temperature:50○C

►Max Ambient Temperature:+45○C

PUMP

►PUMP BODY : Cast iron

►IMPELLER: Brass

►FRONT COVER : Cast iron

►MECHNICAL SEAL:Ceramic,graphite and rubber

MOTOR

►Built-in thermal protector for the single phase motor

►INSULATIONl:Class B/F

►PROTECTION:IP44/54

Model	Power	H,max	Q.max	S.Head	Speed	Inch
AUTO QB-60	0.5HP / 0.37KW	35m	35l/min	9m	2850rpm	1"x1"
AUTO QB-70	0.75HP / 0.55KW	45m	45l/min	9m	2850rpm	1"x1"
AUTO QB-80	1HP/ 0.75KW	50m	50l/min	9m	2850rpm	1"x1"

Wholesale and Selection FAQ

What details are needed for selection?

Send the required flow and total head at the operating point, water source, installation layout, power supply, quantity and destination market. We will compare the duty point with the selected model's performance data. Maximum head and maximum flow are not simultaneous operating values.

What is the MOQ and production lead time?

Standard MOQ is 100 pcs. Typical production lead time is 20–25 days for loose cargo or 30–36 days for a container order, subject to final configuration and the confirmed schedule.

Can you provide OEM and certification documents?

Branding, packaging and electrical options depend on the selected model. ISO 9001 quality management documentation is available; CE documentation applies only to eligible models and must be checked for the exact model and destination market.

Request a quotation with the model, flow, head, voltage, quantity and destination.
